Based on yiisoft/yii2-app-advanced, create a new repository yii2-app-advanced on github, and create a new interface application (implement RESTful-style web service services. API), support for creating new API directories, configuration and environment, testing, vagrant, etc. (1)

by 永夜 · 2018/04/03

浏览量： 11

1. Create a new warehouse, shuijingwan/yii2-app-advanced, as shown in Figure 1
Yii 2 advanced project template, the template includes four layers: interface (the API to implement the RESTful style web service service), front-end, back-end and console, each of which is a separate YII application.

Figure 1

2. Successfully created the warehouse, as shown in Figure 2

Figure 2

3. Use the following command to install the application: yiisoft/yii2-app-advanced, as shown in Figure 3

Figure 3

composer self-update
composer global require "fxp/composer-asset-plugin"
composer create-project --prefer-dist yiisoft/yii2-app-advanced github-shuijingwan-yii2-app-advanced

4. Create a new warehouse on the command line and push the existing repository to shuijingwan/yii2-app-advanced, based on the second step, as shown in Figure 4

在命令行上创建一个新的仓库，推送现有的仓库至shuijingwan/yii2-app-advanced，基于第2步骤

Figure 4

git init
git add .
git commit -m "After all commits after installing yiisoft/yii2-app-advanced."
Git Remote Add Origin https://github.com/shuijingwan/yii2-app-advanced.git
git push -u origin master

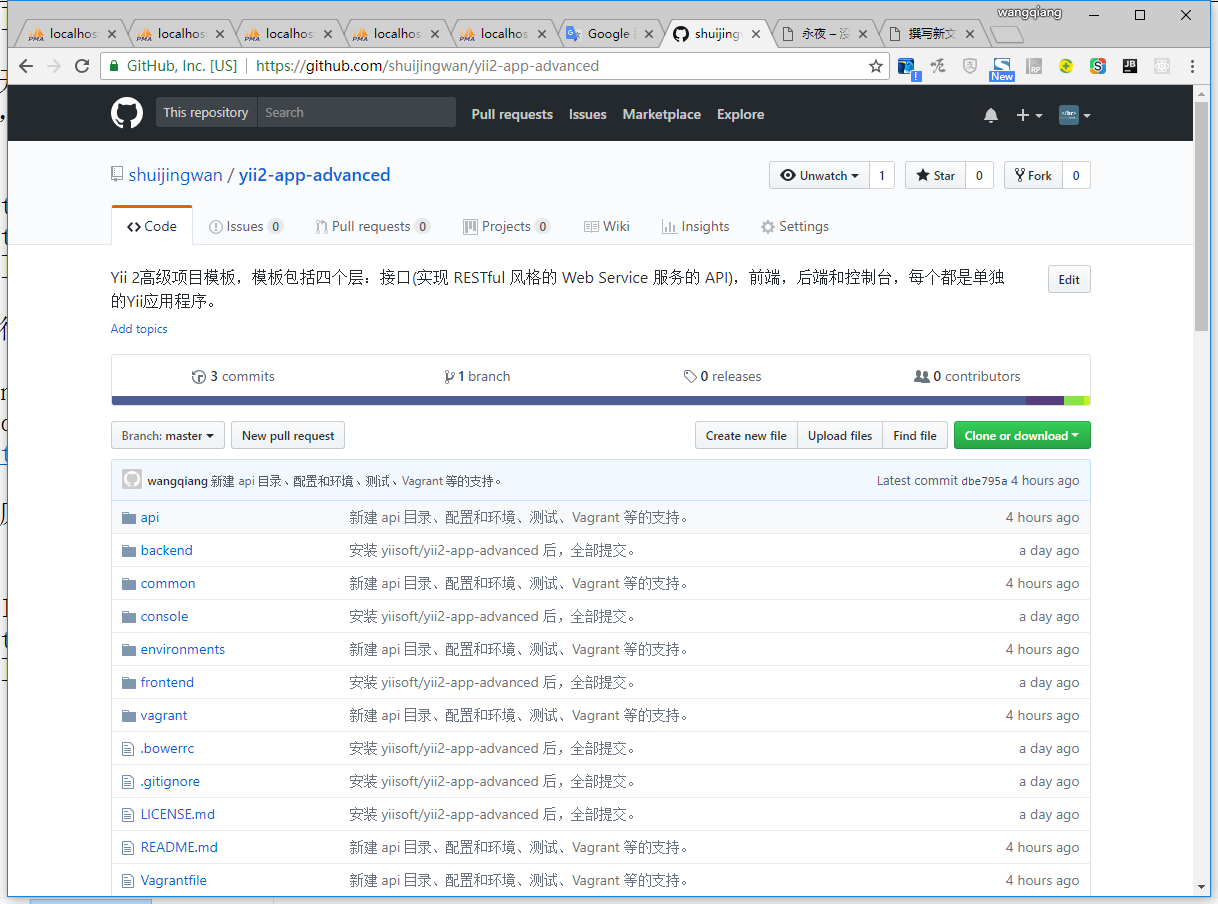

5. Open: https://github.com/shuijingwan/yii2-app-advanced, the warehouse has been successfully pushed, as shown in Figure 5

打开：https://github.com/shuijingwan/yii2-app-advanced ，仓库已经推送成功

Figure 5

6. Open Windows PowerShell, execute the init command and select dev as the environment, as shown in Figure 6

打开 Windows PowerShell，执行 init 命令并选择 dev 作为环境

Figure 6

.\init
0
yes

7. Change the host file to point the domain to your server, configure the C:\Windows\System32\Drivers\etc\hosts file, as shown in Figure 7

$更改主机文件以将域指向您的服务器，配置 C:\Windows\System32\drivers\etc\hosts 文件$

Figure 7

# github-shuijingwan-yii2-app-advanced
127.0.0.1 github-shuijingwan-yii2-app-advanced.localhost www.github-shuijingwan-yii2-app-advanced.localhost backend.github-shuijingwan-yii2-app-advanced.localhost api.github-shuijingwan-yii2-app-advanced.localhost

8. Configure the Web server based on Nginx, configure virtual hosts: WWW, Backend, API to suspend configuration, edit C:\nginx-1.10.1\conf\vhosts\github-shuijingwan-yii2-app-advanced.conf

## frontend ##
server {
Charset UTF-8;
client_max_body_size 128M;

listen 80; ## listen for ipv4
#listen[::]:80 default_server ipv6only=on; ## listen for ipv6

server_name www.github-shuijingwan-yii2-app-advanced.localhost;
root e:/wwwroot/github-shuijingwan-yii2-app-advanced/frontend/web;
index index.php;

access_log logs/www.github-shuijingwan-yii2-app-advanced.localhost.access.log;
error_log logs/www.github-shuijingwan-yii2-app-advanced.localhost.error.log;

location / {
# redirect everything that isnt a real file to index.php
try_files $uri $uri//index.php$is_args$args;
}

# uncomment to avoid processing by yii
#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
# try_files $URI =404;
#}
#error_page 404 /404.html;

# deny accessing php files for the /assets directory
location ~ ^/assets/.*\.php$ {
deny all;
}

location ~ \.php$ {
include fastcgi_params;
fastcgi_param script_filename $document_root$fastcgi_script_name;
fastcgi_pass 127.0.0.1:9000;
#fastcgi_pass unix:/var/run/php5-fpm.sock;
try_files $URI =404;
}

location ~* /\. {
deny all;
}
}

## backend ##
server {
Charset UTF-8;
client_max_body_size 128M;

listen 80; ## listen for ipv4
#listen[::]:80 default_server ipv6only=on; ## listen for ipv6

server_name backend.github-shuijingwan-yii2-app-advanced.localhost;
root e:/wwwroot/github-shuijingwan-yii2-app-advanced/backend/web;
index index.php;

access_log logs/backend.github-shuijingwan-yii2-app-advanced.localhost.access.log;
error_log logs/backend.github-shuijingwan-yii2-app-advanced.localhost.error.log;

location / {
# redirect everything that isnt a real file to index.php
try_files $uri $uri//index.php$is_args$args;
}

# uncomment to avoid processing by yii
#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
# try_files $URI =404;
#}
#error_page 404 /404.html;

# deny accessing php files for the /assets directory
location ~ ^/assets/.*\.php$ {
deny all;
}

location ~ \.php$ {
include fastcgi_params;
fastcgi_param script_filename $document_root$fastcgi_script_name;
fastcgi_pass 127.0.0.1:9000;
#fastcgi_pass unix:/var/run/php5-fpm.sock;
try_files $URI =404;
}

location ~* /\. {
deny all;
}
}

## misc ##

### www redirect ###
server {
listen 80;
server_name github-shuijingwan-yii2-app-advanced.localhost;
return 301 http://www.github-shuijingwan-yii2-app-advanced.localhost$request_uri;
}

9. Check whether the current PHP environment meets the most basic needs of Yii, copy /requirements.php to /frontend/web/requirements.php, and then access the url through the browser http://www.github-shuijingwan-yii2-app-advanced.localhost/requirements.php , as shown in Figure 8

检查当前 PHP 环境是否满足 Yii 最基本需求，复制 /requirements.php 到 /frontend/web/requirements.php，然后通过浏览器访问 URL http://www.github-shuijingwan-yii2-app-advanced.localhost/requirements.php

$frameworkPath = dirname(__file__) ./../../vendor/yiisoft/yii2;

10. Create a new database (g-s-yii2-app-advanced) and adjust the components in /common/config/main-local.php accordingly[‘db’]Configuration, the character set is utf8mb4.

Create userg-s-yii2-app-advancedat%Identified with mysql_native_password as**;grant usage on *.* tog-s-yii2-app-advancedat%require none with max_queries_per_hour 0 max_connections_per_hour 0 max_updates_per_hour 0 max_user_connections 0;create database if not exists `g-s-yii2-app-advanced`; grant all priorityg-s-yii2-app-advancedat%;

db=&gt;[
class=&gt;yii\db\connection,
DSN=&gt;mysql:host=localhost;dbname=g-s-yii2-app-advanced,
username=&gt;g-s-yii2-app-advanced,
Password=&gt;IADO0X7UK4Parrm,
Charset=&gt;utf8mb4,
]#ATFP_CLOSE_Translate_span#,

11. Execute the migration command, as shown in Figure 9

Figure 9

.\yii migrate
yes

12. Check the database, the sorting rule is: utf8mb4_unicode_ci, as shown in Figure 10

Figure 10

13. Create a test database (g-s-yii2-app-advanced-test) and adjust the components in /common/config/test-local.php accordingly[‘db’]Configuration, the character set is utf8mb4.

Create userg-s-yii2-app-advanced-testat%Identified with mysql_native_password as**;grant usage on *.* tog-s-yii2-app-advanced-testat%require none with max_queries_per_hour 0 max_connections_per_hour 0 max_updates_per_hour 0 max_user_connections 0;create database if not exists `g-s-yii2-app-advanced-test`; grant all priority `g-s-yii2-app-advanced-test`.* tog-s-yii2-app-advanced-testat%;

db=&gt;[
DSN=&gt;mysql:host=localhost;dbname=g-s-yii2-app-advanced-test,
username=&gt;g-s-yii2-app-advanced-test,
Password=&gt;9dixzevrgn9akpco,
Charset=&gt;utf8mb4,
]#ATFP_CLOSE_Translate_span#

14. Execute the migration command and report an error: ExceptionYii\Base\UnknownPropertyExceptionwith messageSetting unknown property: yii\console\request::cookieValidat
ionkeyIn e:\wwwroot\github-shuijingwan-yii2-app-advanced\vendor\yiisoft\yii2\base\component.php:209, as shown in Figure 11

$执行迁移命令，报错：Exception 'yii\base\UnknownPropertyException' with message 'Setting unknown property: yii\console\Request::cookieValidat ionKey' in E:\wwwroot\github-shuijingwan-yii2-app-advanced\vendor\yiisoft\yii2\base\Component.php:209$

Figure 11

./yii_test migrate

15. Since the console application uses different request components, edit \common\config\test.php, and annotate the request component (uncomment in the web application), as shown in Figure 12

$由于控制台应用程序使用不同的请求组件，因此编辑 \common\config\test.php，注释 request 组件(在 Web 应用程序中需取消注释)$

Figure 12

components=&gt;[
user=&gt; [
class=&gt;yii\web\user,
IdentityClass=&gt;common\models\user,
]#ATFP_CLOSE_Translate_span#,
tiveting
request=&gt;[
CookieValidationKey=&gt;Test,
]#ATFP_CLOSE_Translate_span#,
*/
],

16. Execute the migration command, build the test suite, and then run all the sample tests, as shown in Figure 13
Note: After executing the migration command (./yii_test migrate), you need to uncomment the request component, otherwise an error will be reported:

Figure 13

test ..\common\tests\unit\models\loginformtest.php:testLoginCorRect

[yii\base\InvalidConfigException]yii\web\request::cookieValidationKey must be configured with a secret key.

./yii_test migrate
vendor/bin/codecept build
vendor/bin/codecept run

17. Check the test database, the sorting rule is: utf8mb4_unicode_ci, as shown in Figure 14

Figure 14

18. Add interface application (API), copy frontend to API, environments/dev/frontend to environments/dev/api and environments/prod/frontend to environments/prod/api, as shown in Figure 15

添加接口应用程序(api)，复制 frontend 至 api, environments/dev/frontend 至 environments/dev/api 以及 environments/prod/frontend 至 environments/prod/api

Figure 15

19. Delete all the files under the directory \API\Runtime\Debug, and adjust the namespace and path in the directory /API to start with the API (replace frontend to API), as shown in Figure 16

$删除目录 \api\runtime\debug 下的所有文件，在目录 /api 中调整命名空间和路径以 api 开头(替换 frontend 为 api)$

Figure 16

20. Add yii::setAlias in Common\Config\Bootstrap.php(API, dirname(dirname(__dir__)) ./api), as shown in Figure 17

$在 common\config\bootstrap.php 中添加 Yii::setAlias('api', dirname(dirname(__DIR__)) . '/api');$

Figure 17

21. Edit environments/index.php, search for this file with 6 frontends, then copy 6 copies accordingly, and replace them with api, as shown in Figure 18

编辑environments/index.php，搜索此文件有6处frontend，则相应复制6份，替换为api

22, \vagrant\nginx\app.conf, add virtual host API

\vagrant\nginx\app.conf

server {
Charset UTF-8;
client_max_body_size 128M;
sendfile off;

listen 80; ## listen for ipv4
#listen[::]:80 default_server ipv6only=on; ## listen for ipv6

server_name y2aa-frontend.test;
root /app/frontend/web/;
index index.php;

access_log /app/vagrant/nginx/log/frontend-access.log;
error_log /app/vagrant/nginx/log/frontend-error.log;

location / {
# redirect everything that isnt a real file to index.php
try_files $uri $uri//index.php$is_args$args;
}

# uncomment to avoid processing by yii
#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
# try_files $URI =404;
#}
#error_page 404 /404.html;

location ~ \.php$ {
include fastcgi_params;
fastcgi_param script_filename $document_root$fastcgi_script_name;
#fastcgi_pass 127.0.0.1:9000;
fastcgi_pass unix:/var/run/php/php7.0-fpm.sock;
try_files $URI =404;
}

location ~ /\.(ht|svn|git) {
deny all;
}
}

server {
Charset UTF-8;
client_max_body_size 128M;
sendfile off;

listen 80; ## listen for ipv4
#listen[::]:80 default_server ipv6only=on; ## listen for ipv6

server_name y2aa-backend.test;
root /app/backend/web/;
index index.php;

access_log /app/vagrant/nginx/log/backend-access.log;
error_log /app/vagrant/nginx/log/backend-error.log;

location / {
# redirect everything that isnt a real file to index.php
try_files $uri $uri//index.php$is_args$args;
}

# uncomment to avoid processing by yii
#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
# try_files $URI =404;
#}
#error_page 404 /404.html;

location ~ \.php$ {
include fastcgi_params;
fastcgi_param script_filename $document_root$fastcgi_script_name;
#fastcgi_pass 127.0.0.1:9000;
fastcgi_pass unix:/var/run/php/php7.0-fpm.sock;
try_files $URI =404;
}

location ~ /\.(ht|svn|git) {
deny all;
}
}

server {
Charset UTF-8;
client_max_body_size 128M;
sendfile off;

listen 80; ## listen for ipv4
#listen[::]:80 default_server ipv6only=on; ## listen for ipv6

server_name y2aa-api.test;
root /app/api/web/;
index index.php;

access_log /app/vagrant/nginx/log/api-access.log;
error_log /app/vagrant/nginx/log/api-error.log;

location / {
# redirect everything that isnt a real file to index.php
try_files $uri $uri//index.php$is_args$args;
}

# uncomment to avoid processing by yii
#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
# try_files $URI =404;
#}
#error_page 404 /404.html;

location ~ \.php$ {
include fastcgi_params;
fastcgi_param script_filename $document_root$fastcgi_script_name;
#fastcgi_pass 127.0.0.1:9000;
fastcgi_pass unix:/var/run/php/php7.0-fpm.sock;
try_files $URI =404;
}

location ~ /\.(ht|svn|git) {
deny all;
}
}

23. Edit \vagrant\nginx\log\.gitignore, the log file of the configuration API is ignored

# nginx logs
backend-access.log
backend-error.log
frontend-access.log
frontend-error.log
api-access.log
api-error.log

24. Edit \VagrantFile to add API-related configurations

requireyaml
requireFileUtils

required_plugins = %w( vagrant-hostmanager vagrant-vbguest )
required_plugins.each do |plugin|
Exec "vagrant plugin install #{plugin}" unless vagrant.has_plugin? plugin?
End

domains = {
frontend:y2aa-frontend.test,
backend:y2aa-backend.test,
API:Y2AA-API.Test,
}

config = {
local:./vagrant/config/vagrant-local.yml,
example:./vagrant/config/vagrant-local.example.yml
}

# copy config from example if local config not exists
fileutils.cp config[:example], config[:local]unless file.exist?(config[:local])
# read config
options = yaml.load_file config[:local]

# check github token
if options['github_token'].nil? || options['github_token'].to_s.length != 40
puts "You must place real github token into configuration:\n/yii2-app-advanced/vagrant/config/vagrant-local.yml"
exit
End

# vagrant configure
vagrant.configure(2) do |config|
# select the box
config.vm.box =Bento/Ubuntu-16.04

# should we ask about box updates?
config.vm.box_check_update = options['box_check_update']

config.vm.providervirtualboxdo |vb|
# machine cpus count
vb.cpus = options['cpus']
# Machine Memory Size
vb.memory = options['memory']
# machine name (for virtualbox UI)
vb.name = options['machine_name']
End

# machine name (for vagrant console)
config.vm.define options['machine_name']

# machine name (for guest machine)
config.vm.hostname = options['machine_name']

# network settings
config.vm.networkprivate_network, ip: options['ip']

# sync: folderyii2-app-advanced(host machine) -> folder/app(guest machine)
config.vm.synced_folder./,/app, OWNER:vagrant, group:vagrant

# disable folder/vagrant(guest machine)
config.vm.synced_folder.,/vagrant, disabled: true

# hosts settings (host machine)
config.vm.provision :hostmanager
config.hostmanager.enabled = true
config.hostmanager.manage_host = true
config.hostmanager.ignore_private_ip = false
config.hostmanager.include_offline = true
config.hostmanager.aliases = domains.values

# Provisioners
config.vm.provisionshell, path:./vagrant/provision/once-as-root.sh, args:[options['timezone']]
config.vm.provisionshell, path:./vagrant/provision/once-as-vagrant.sh, args:[options['github_token'], privileged: false
config.vm.provisionshell, path:./vagrant/provision/always-as-root.sh, run:Always

# post-install message (vagrant console)
config.vm.post_up_message = "Frontend URL: http://#{domains[:frontend]}\nbackend url: http://#{domains[:backend]}\NAPI URL: http://#{domains[:api]}"
End

25. Configure the web server based on Nginx, configure virtual hosts: WWW, Backend, API, edit C:\nginx-1.10.1\conf\vhosts\github-shuijingwan-yii2-app-advanced.conf

## frontend ##
server {
Charset UTF-8;
client_max_body_size 128M;

listen 80; ## listen for ipv4
#listen[::]:80 default_server ipv6only=on; ## listen for ipv6

server_name www.github-shuijingwan-yii2-app-advanced.localhost;
root e:/wwwroot/github-shuijingwan-yii2-app-advanced/frontend/web;
index index.php;

access_log logs/www.github-shuijingwan-yii2-app-advanced.localhost.access.log;
error_log logs/www.github-shuijingwan-yii2-app-advanced.localhost.error.log;

location / {
# redirect everything that isnt a real file to index.php
try_files $uri $uri//index.php$is_args$args;
}

# uncomment to avoid processing by yii
#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
# try_files $URI =404;
#}
#error_page 404 /404.html;

# deny accessing php files for the /assets directory
location ~ ^/assets/.*\.php$ {
deny all;
}

location ~ \.php$ {
include fastcgi_params;
fastcgi_param script_filename $document_root$fastcgi_script_name;
fastcgi_pass 127.0.0.1:9000;
#fastcgi_pass unix:/var/run/php5-fpm.sock;
try_files $URI =404;
}

location ~* /\. {
deny all;
}
}

## backend ##
server {
Charset UTF-8;
client_max_body_size 128M;

listen 80; ## listen for ipv4
#listen[::]:80 default_server ipv6only=on; ## listen for ipv6

server_name backend.github-shuijingwan-yii2-app-advanced.localhost;
root e:/wwwroot/github-shuijingwan-yii2-app-advanced/backend/web;
index index.php;

access_log logs/backend.github-shuijingwan-yii2-app-advanced.localhost.access.log;
error_log logs/backend.github-shuijingwan-yii2-app-advanced.localhost.error.log;

location / {
# redirect everything that isnt a real file to index.php
try_files $uri $uri//index.php$is_args$args;
}

# uncomment to avoid processing by yii
#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
# try_files $URI =404;
#}
#error_page 404 /404.html;

# deny accessing php files for the /assets directory
location ~ ^/assets/.*\.php$ {
deny all;
}

location ~ \.php$ {
include fastcgi_params;
fastcgi_param script_filename $document_root$fastcgi_script_name;
fastcgi_pass 127.0.0.1:9000;
#fastcgi_pass unix:/var/run/php5-fpm.sock;
try_files $URI =404;
}

location ~* /\. {
deny all;
}
}

## API ##
server {
Charset UTF-8;
client_max_body_size 128M;

listen 80; ## listen for ipv4
#listen[::]:80 default_server ipv6only=on; ## listen for ipv6

server_name api.github-shuijingwan-yii2-app-advanced.localhost;
root e:/wwwroot/github-shuijingwan-yii2-app-advanced/api/web;
index index.php;

access_log logs/api.github-shuijingwan-yii2-app-advanced.localhost.access.log;
error_log logs/api.github-shuijingwan-yii2-app-advanced.localhost.error.log;

location / {
# redirect everything that isnt a real file to index.php
try_files $uri $uri//index.php$is_args$args;
}

# uncomment to avoid processing by yii
#location ~ \.(js|css|png|jpg|gif|swf|ico|pdf|mov|fla|zip|rar)$ {
# try_files $URI =404;
#}
#error_page 404 /404.html;

# deny accessing php files for the /assets directory
location ~ ^/assets/.*\.php$ {
deny all;
}

location ~ \.php$ {
include fastcgi_params;
fastcgi_param script_filename $document_root$fastcgi_script_name;
fastcgi_pass 127.0.0.1:9000;
#fastcgi_pass unix:/var/run/php5-fpm.sock;
try_files $URI =404;
}

location ~* /\. {
deny all;
}
}

## misc ##

### www redirect ###
server {
listen 80;
server_name github-shuijingwan-yii2-app-advanced.localhost;
return 301 http://www.github-shuijingwan-yii2-app-advanced.localhost$request_uri;
}

26. Open Windows PowerShell, execute the init command and select dev as the environment, and the environment configuration file required by the API application is automatically generated, as shown in Figure 19

打开 Windows PowerShell，执行 init 命令并选择 dev 作为环境，api应用所需环境配置文件自动生成

Figure 19

.\init
0
yes
yes
yes
yes
yes
yes

27. Open: http://api.github-shuijingwan-yii2-app-advanced.localhost/ , as expected, as shown in Figure 20

打开：http://api.github-shuijingwan-yii2-app-advanced.localhost/ ，符合预期

Figure 20

28. Edit the codeception.yml configuration that contains the tests of all applications, as shown in Figure 21

Figure 21

# global codeception file to run tests from all apps
include:
- Common
-frontend
- backend
- API
paths:
log: console/runtime/logs
settings:
colors: true

29. Run all sample tests, including the API, as shown in Figure 22

Figure 22

vendor/bin/codecept run

30. Edit readme.md and add an API to the directory structure

&lt;p align="center"&gt;
&lt;a href="https://github.com/yiisoft" target="_blank"&gt;
&lt;img src="https://avatars0.githubusercontent.com/u/993323" height="100px"&gt;
&lt;/a&gt;
&lt;h1 align="center"&gt;yii 2 Advanced project template&lt;/h1&gt;
&lt;br&gt;
&lt;/p&gt;

Yii 2 Advanced Project Template is a Skeleton[Yii 2](http://www.yiiframework.com/) Application best for
Developing Complex Web Applications with Multiple Tiers.

The Template includes three tiers: front end, back end, and console, each of which
Is a separate yii application.

The template is designed to work in a team development environment. It supports
Deploying the application in different environments.

documentation is at[docs/guide/README.md](docs/guide/readme.md).

[![Latest Stable Version](https://img.shields.io/packagist/v/yiisoft/yii2-app-advanced. svg)] (https://packagist.org/packages/yiisoft/yii2-app-advanced)
[![Total Downloads](https://img.shields.io/packagist/dt/yiisoft/yii2-app-advanced. svg)] (https://packagist.org/packages/yiisoft/yii2-app-advanced)
[![Build Status](https://travis-ci.org/yiisoft/yii2-app-advanced.svg?branc H=master)](https://travis-ci.org/yiisoft/yii2-app-advanced)

Directory Structure
-------------------

```
Common
config/ contain shared configurations
Mail/ Contains View Files for E-Mails
Models/ contains models used in both API and backend and frontend
Tests/ contains tests for common classes
Console
config/ contain console configurations
Controllers/contains console controls (commands)
Migrations/ contains database migrations
Models/contains console-specific model classes
Runtime/ Contains files generated runtime
backend
Assets/ contains applications assets such as JavaScript and CSS
config/ contain backend configurations
Controllers/ contains web controller classes
Models/contains backend-specific model classes
Runtime/ Contains files generated runtime
Tests/ contains tests for backend applications
views/ contains views files for the web application
Web/ Contains the Entry Script and Web Resources
frontend
Assets/ contains applications assets such as JavaScript and CSS
config/ contain frontend configurations
Controllers/ contains web controller classes
Models/contains frontend-specific model classes
Runtime/ Contains files generated runtime
Tests/ contains tests for frontend applications
views/ contains views files for the web application
Web/ Contains the Entry Script and Web Resources
widgets/contains frontend widgets
API
Assets/ contains applications assets such as JavaScript and CSS
config/ contain API configurations
Controllers/ contains web controller classes
Models/Contains API-Specific Model Classes
Runtime/ Contains files generated runtime
Tests/ contains tests for API application
views/ contains views files for the web application
Web/ Contains the Entry Script and Web Resources
widgets/ contains api widgets
Vendor/ Contains Dependent 3rd-Party Packages
environments/contains environment-based overrides
```

31. Test whether to use vagrant to install, whether to support API, reference URL: https://github.com/yiisoft/yii2-app-advance d/blob/master/docs/guide-en-en/start-installation.md , using Vagrant to install (Windows User Manual)

32. Go to the /vagrant/config folder, rename vagrant-local.example.yml as vagrant-local.yml (recommended to copy), and place the github personal API token to vagrant-local.yml, as shown in Figure 23

进入 /vagrant/config 文件夹，重命名 vagrant-local.example.yml 为 vagrant-local.yml(建议复制)，将GitHub个人API令牌放置到 vagrant-local.yml

Figure 23

33. Add the following code to the hosts file

# github-shuijingwan-yii2-app-advanced vagrant
192.168.83.137 y2aa-frontend.test y2aa-backend.test y2aa-api.test

34. Open Windows PowerShell, switch the path to the root directory of the project, and execute the following commands (need to overturn the wall, it may need to be executed multiple times), there is an error during the period, refer to step 15 processing, as shown in Figure 24 and Figure 25

打开Windows PowerShell，切换路径至项目根目录，并且执行如下命令

Figure 24

Figure 25

Vagrant plugin install vagrant-hostmanager
vagrant up

35. After waiting for completion, just access the following URL in the browser, which is in line with expectations, as shown in Figure 26
frontend: http://y2aa-frontend.test
backend: http://y2aa-backend.test
API: http://y2aa-api.test

Figure 26

36. Restore the modification made in step 32, and edit \vagrant\config\.gitignore

# local configuration
vagrant-local.yml

Based on yiisoft/yii2-app-advanced, create a new repository yii2-app-advanced on github, and create a new interface application (implement RESTful-style web service services. API), support for creating new API directories, configuration and environment, testing, vagrant, etc. (1)

You may also like...

Leave a Reply Cancel reply

Based on yiisoft/yii2-app-advanced, create a new repository yii2-app-advanced on github, and create a new interface application (implement RESTful-style web service services. API), support for creating new API directories, configuration and environment, testing, vagrant, etc. (1)

You may also like...

In the Google Chrome browser, after Toutiao is opened, a blank analysis is solved

Errors reported under PHP 7.1.12 and Yii Framework/1.1.16: PHP Notice Unserialize(): Unexpected End of Serialized Data The solution of

HTTP Response 502 in K8s, Message: an invalid response was received from the upstream server

Leave a Reply Cancel reply
