在 Altair GraphQL Client 中请求 Shopify’s GraphQL Admin API
1、参考：https://shopify.dev/api/admin-graphql#authentication ，所有 GraphQL Admin API 查询都需要有效的 Shopify 访问令牌。

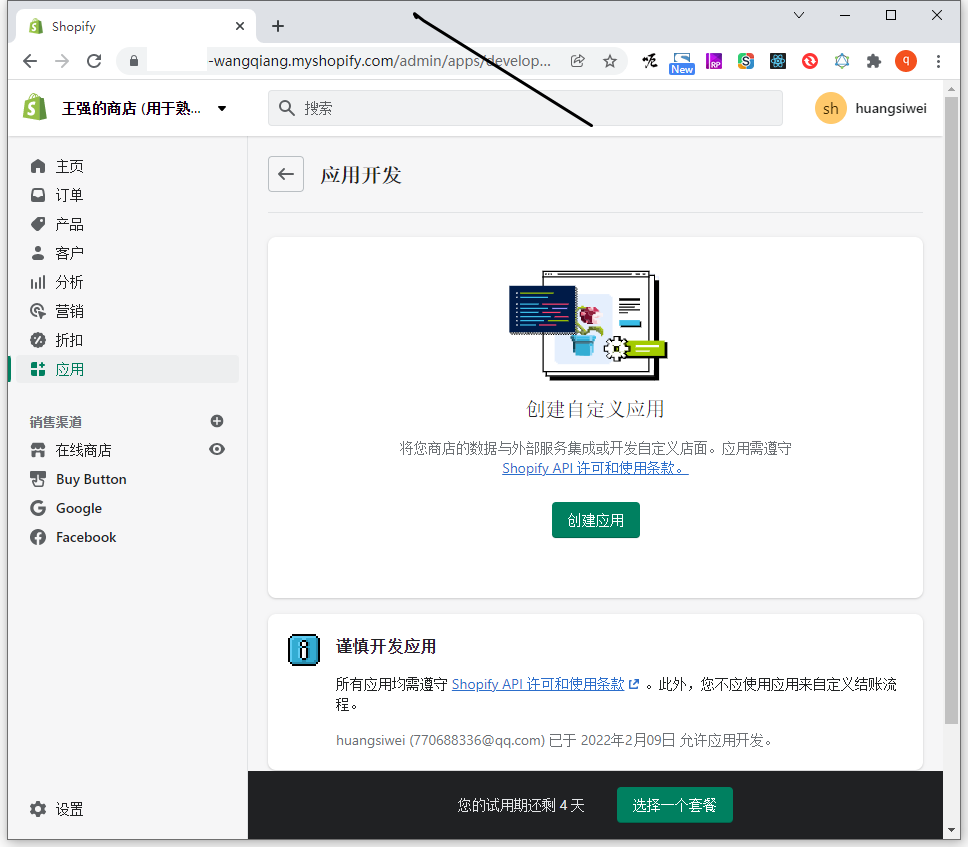

2、打开后台 – 应用 – 开发应用 – 创建自定义应用。如图1
图1

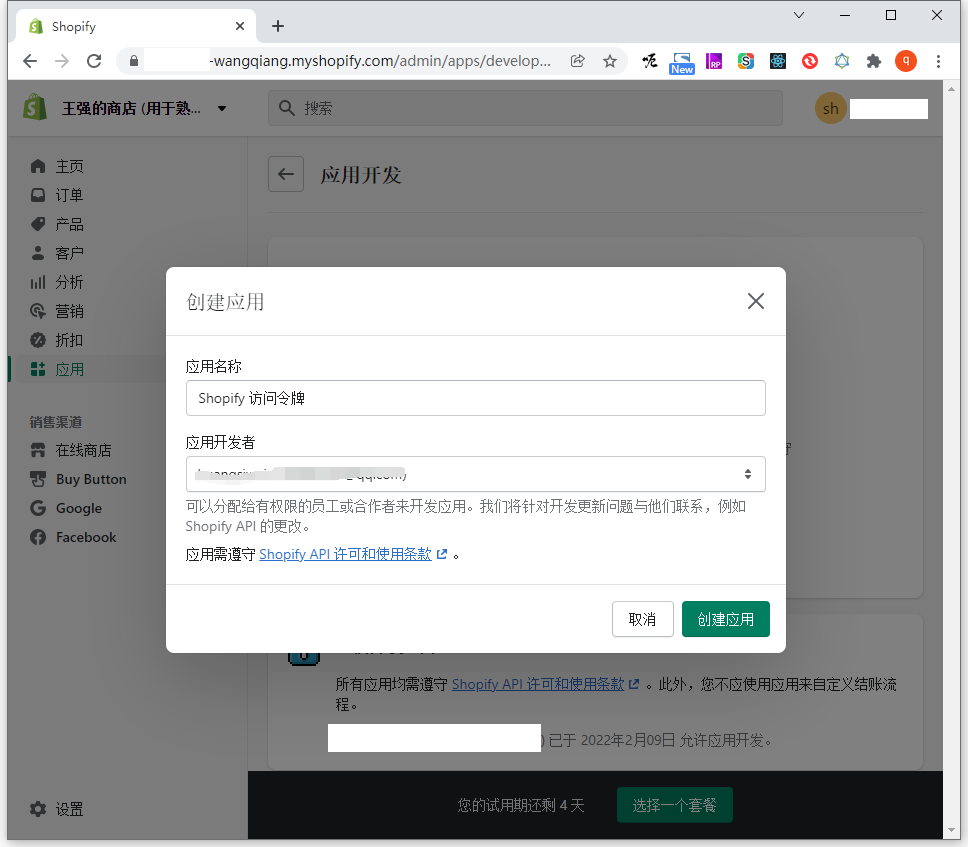

3、输入应用名称，选择应用开发者，创建应用。如图2
图2

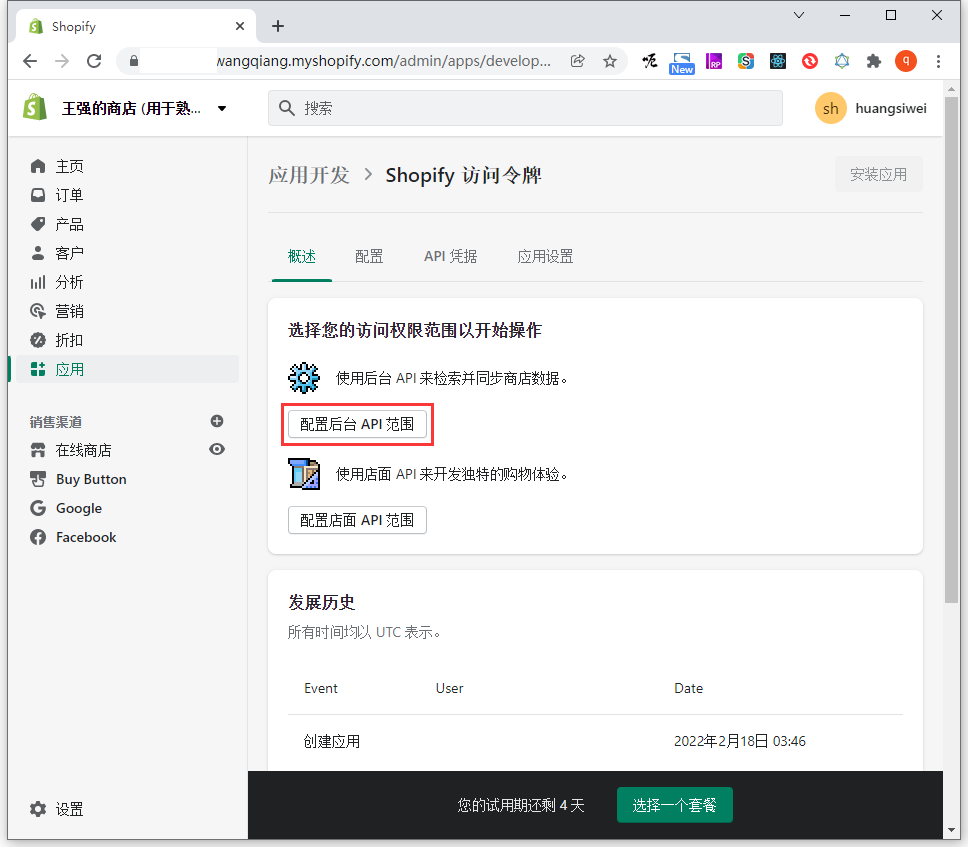

4、配置后台 API 范围。如图3
图3
5、应用开发 – Shopify 访问令牌 – 配置 – 后台 API 集成 – 选择访问范围 – 保存。如图4
图4

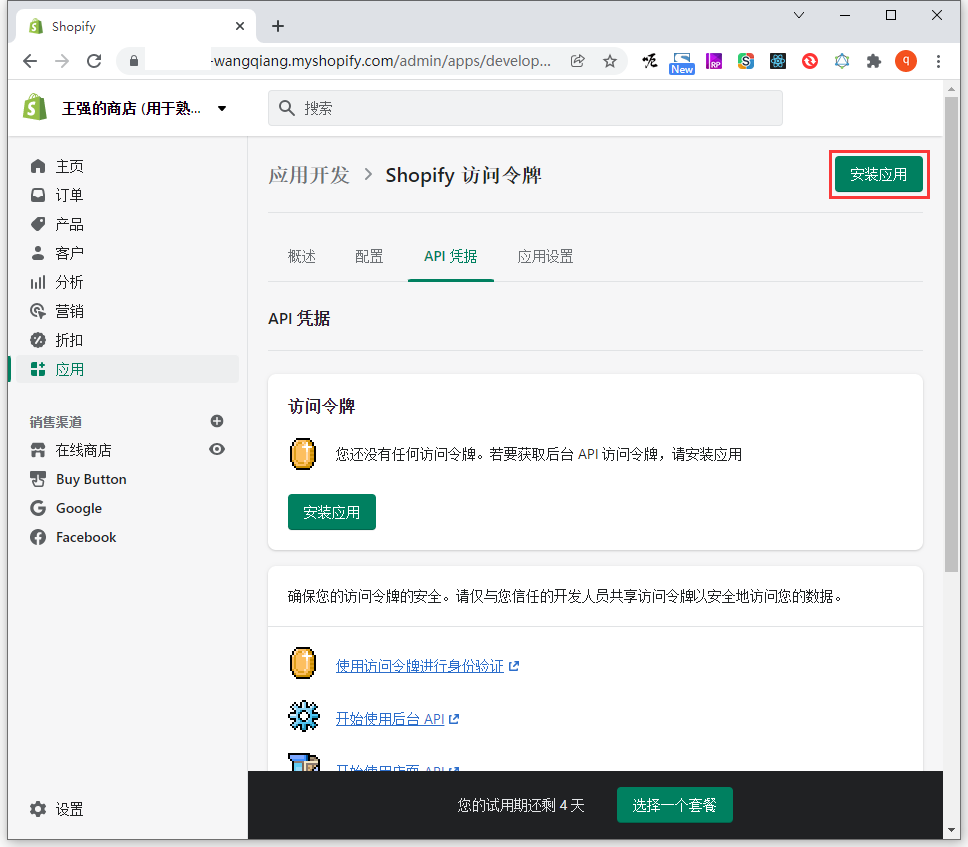

6、API 凭据，您还没有任何访问令牌。若要获取后台 API 访问令牌，请安装应用。安装应用。如图5
图5

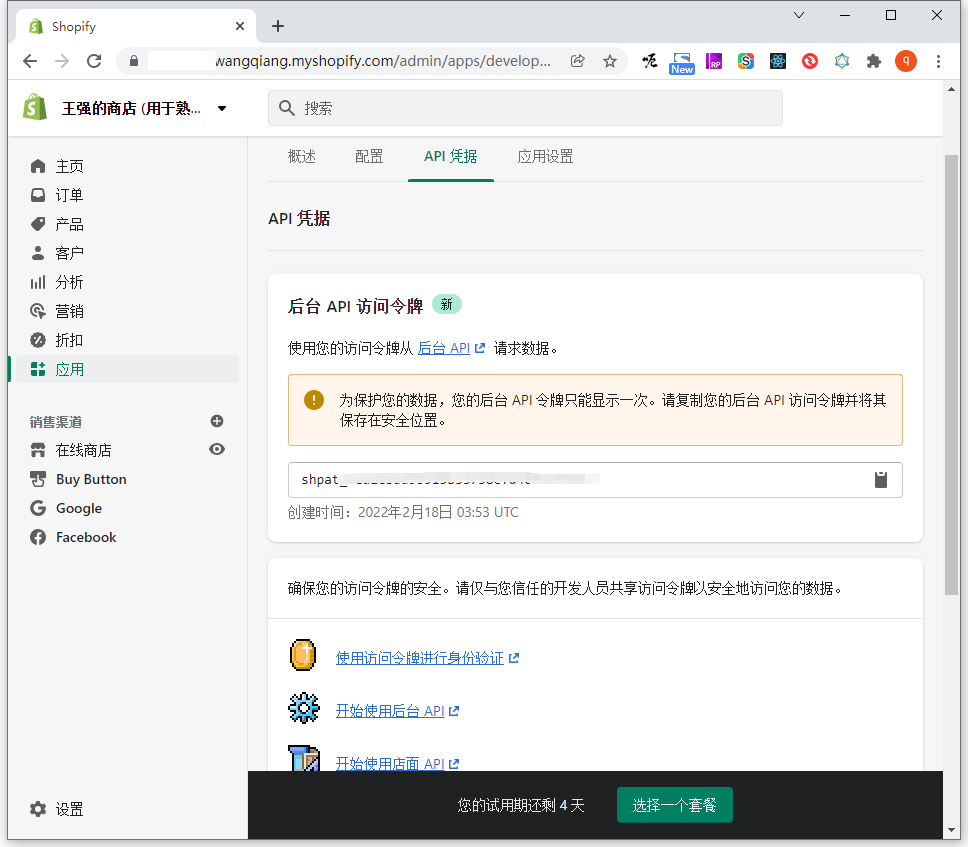

7、API 凭据 – 后台 API 访问令牌。为保护您的数据，您的后台 API 令牌只能显示一次。请复制您的后台 API 访问令牌并将其保存在安全位置。如图6
图6
8、参考：https://shopify.dev/api/admin-graphql#endpoints 。通过向端点发送 POST HTTP 请求来执行 GraphQL 查询。获取最近添加的三个产品的 ID 和标题。在 Altair GraphQL Client 中，新开窗口，输入网址：https://xxx.myshopify.com/admin/api/2022-01/graphql.json ，弹出登录框，如图7
图7

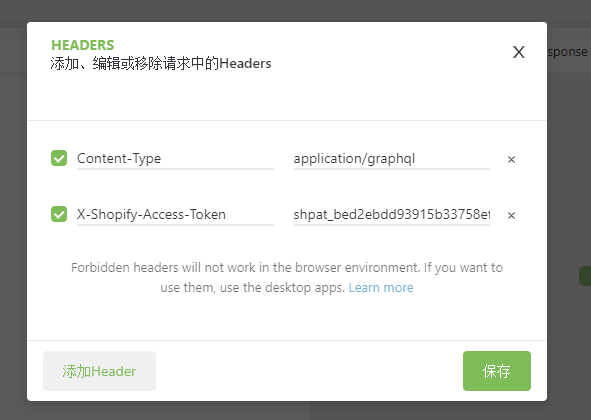

9、设置 Headers ，Content-Type: application/graphql，X-Shopify-Access-Token: {access_token}。如图8
图8
10、设置查询后，响应 404。查看网络请求，先是 301 跳转至 /admin/auth/login，然后 302 跳转至 /admin。如图9
图9
{
products(first: 3) {
edges {
node {
id
title
}
}
}
}

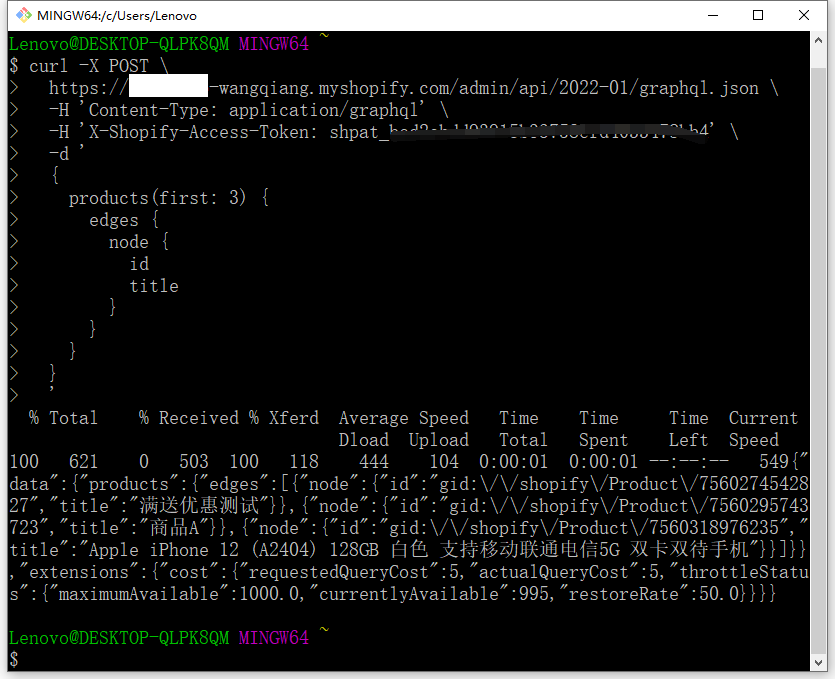

11、但是在 Git Bash 执行查询，响应 200。如图10
图10
$ curl -X POST \
> https://xxx.myshopify.com/admin/api/2022-01/graphql.json \
> -H 'Content-Type: application/graphql' \
> -H 'X-Shopify-Access-Token: shpat_' \
> -d '
> {
> products(first: 3) {
> edges {
> node {
> id
> title
> }
> }
> }
> }
> '
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 621 0 503 100 118 493 115 0:00:01 0:00:01 --:--:-- 610{"data":{"products":{"edges":[{"node":{"id":"gid:\/\/shopify\/Product\/7560274542827","title":"满送优惠测试"}},{"node":{"id":"gid:\/\/shopify\/Product\/7560295743723","title":"商品A"}},{"node":{"id":"gid:\/\/shopify\/Product\/7560318976235","title":"Apple iPhone 12 (A2404) 128GB 白色 支持移动联通电信5G 双卡双待手机"}}]}},"extensions":{"cost":{"requestedQueryCost":5,"actualQueryCost":5,"throttleStatus":{"maximumAvailable":1000.0,"currentlyAvailable":995,"restoreRate":50.0}}}}

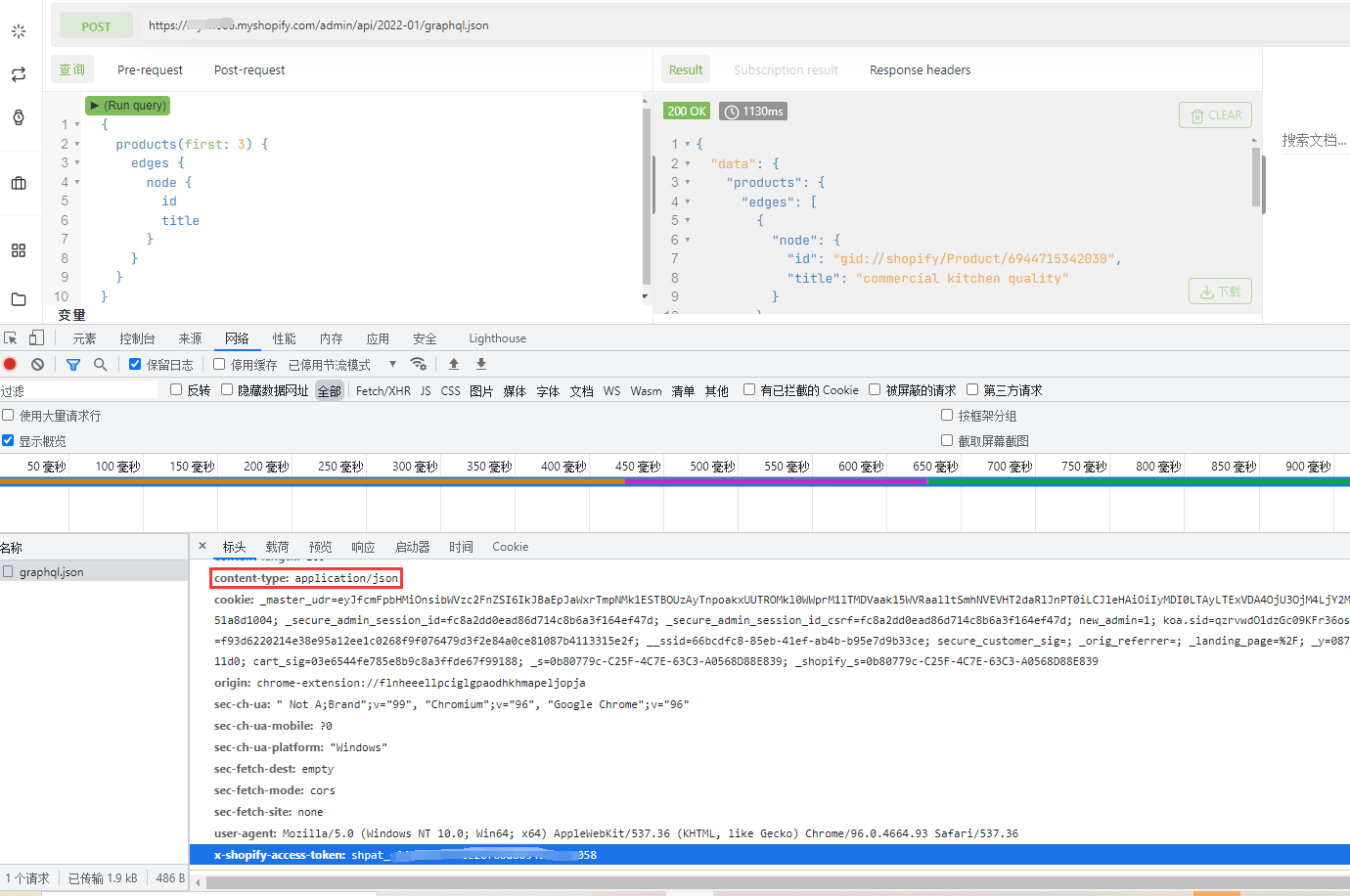

12、参考： https://shopify.dev/api/admin/getting-started#use-curl 。如果您使用的是 HTTP 客户端，例如 Postman 或 Insomnia，则必须将 Content-Type 设置为 application/json 而不是 application/graphql。重新设置 Headers ，Content-Type: application/json。仍然响应 404。当切换为一个正式的商店后，响应 200。如图11
图11
{
products(first: 3) {
edges {
node {
id
title
}
}
}
}
{
"data": {
"products": {
"edges": [
{
"node": {
"id": "gid://shopify/Product/6944715342030",
"title": "commercial kitchen quality"
}
},
{
"node": {
"id": "gid://shopify/Product/6944715636942",
"title": "Easter Photographing Dress-up Acessories"
}
},
{
"node": {
"id": "gid://shopify/Product/6944715702478",
"title": "Perfect Pet Hair Remover"
}
}
]
}
},
"extensions": {
"cost": {
"requestedQueryCost": 5,
"actualQueryCost": 5,
"throttleStatus": {
"maximumAvailable": 1000,
"currentlyAvailable": 995,
"restoreRate": 50
}
}
}
}

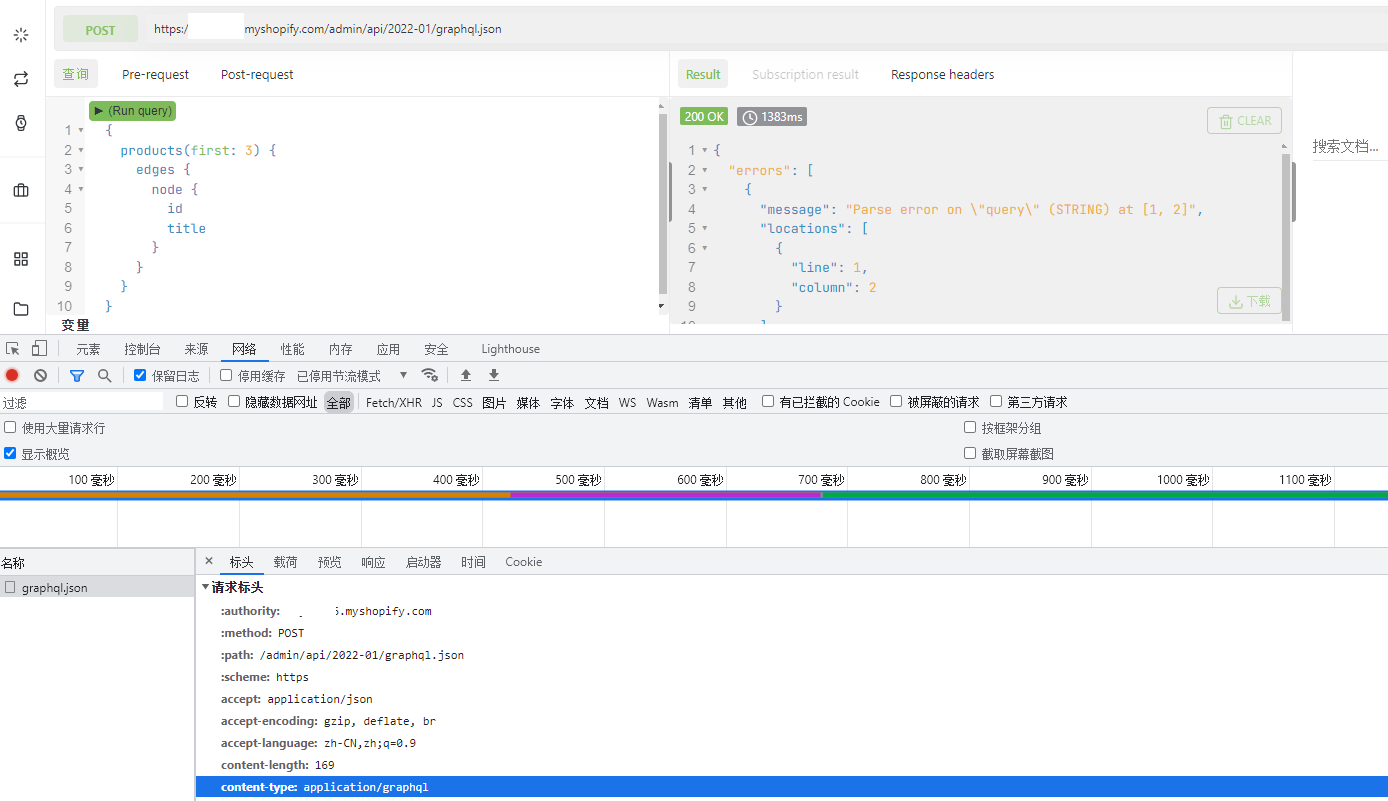

13、当 设置 Headers ，Content-Type: application/graphql 时，报错：Parse error on \”query\” (STRING) at [1, 2]。如图12
![当 设置 Headers ，Content-Type: application/graphql 时，报错：Parse error on \"query\" (STRING) at [1, 2]](https://www.shuijingwanwq.com/wp-content/uploads/2022/03/12.png)
图12
{
"errors": [
{
"message": "Parse error on \"query\" (STRING) at [1, 2]",
"locations": [
{
"line": 1,
"column": 2
}
]
}
]
}
14、在 Postman 中，二个商店皆是未跳转的，试用期响应 200，正式响应 200。试用期可用，正式可用。符合预期。如图12
图12
试用期商店的响应
{
"data": {
"products": {
"edges": [
{
"node": {
"id": "gid://shopify/Product/7560274542827",
"title": "满送优惠测试"
}
},
{
"node": {
"id": "gid://shopify/Product/7560295743723",
"title": "商品A"
}
},
{
"node": {
"id": "gid://shopify/Product/7560318976235",
"title": "Apple iPhone 12 (A2404) 128GB 白色 支持移动联通电信5G 双卡双待手机"
}
}
]
}
},
"extensions": {
"cost": {
"requestedQueryCost": 5,
"actualQueryCost": 5,
"throttleStatus": {
"maximumAvailable": 1000.0,
"currentlyAvailable": 995,
"restoreRate": 50.0
}
}
}
}
正式商店的响应
{
"data": {
"products": {
"edges": [
{
"cursor": "eyJsYXN0X2lkIjo2OTQ0NzE1MzQyMDMwLCJsYXN0X3ZhbHVlIjoiNjk0NDcxNTM0MjAzMCJ9",
"node": {
"id": "gid://shopify/Product/6944715342030",
"title": "commercial kitchen quality"
}
}
],
"pageInfo": {
"hasNextPage": true,
"hasPreviousPage": false
}
}
},
"extensions": {
"cost": {
"requestedQueryCost": 3,
"actualQueryCost": 3,
"throttleStatus": {
"maximumAvailable": 1000.0,
"currentlyAvailable": 997,
"restoreRate": 50.0
}
}
}
}
15、在 Git Bash 中，试用期可用，正式可用。符合预期。
试用期商店的响应
$ curl -X POST https://xxx.myshopify.com/admin/api/2022-01/graphql.json -H 'Content-Type: application/graphql' -H 'X-Shopify-Access-Token: shpat_' -d '
{
products(first: 3) {
edges {
node {
id
title
}
}
}
}
'
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 621 0 503 100 118 479 112 0:00:01 0:00:01 --:--:-- 593{"data":{"products":{"edges":[{"node":{"id":"gid:\/\/shopify\/Product\/7560274542827","title":"满送优惠测试"}},{"node":{"id":"gid:\/\/shopify\/Product\/7560295743723","title":"商品A"}},{"node":{"id":"gid:\/\/shopify\/Product\/7560318976235","title":"Apple iPhone 12 (A2404) 128GB 白色 支持移动联通电信5G 双卡双待手机"}}]}},"extensions":{"cost":{"requestedQueryCost":5,"actualQueryCost":5,"throttleStatus":{"maximumAvailable":1000.0,"currentlyAvailable":995,"restoreRate":50.0}}}}
正式商店的响应
$ curl -X POST \
> https://fuyan666.myshopify.com/admin/api/2022-01/graphql.json \
> -H 'Content-Type: application/graphql' \
> -H 'X-Shopify-Access-Token: shpat_' \
> -d '
> {
> products(first: 3) {
> edges {
> node {
> id
> title
> }
> }
> }
> }
> '
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 604 0 486 100 118 538 130 --:--:-- --:--:-- --:--:-- 670{"data":{"products":{"edges":[{"node":{"id":"gid:\/\/shopify\/Product\/6944715342030","title":"commercial kitchen quality"}},{"node":{"id":"gid:\/\/shopify\/Product\/6944715636942","title":"Easter Photographing Dress-up Acessories"}},{"node":{"id":"gid:\/\/shopify\/Product\/6944715702478","title":"Perfect Pet Hair Remover"}}]}},"extensions":{"cost":{"requestedQueryCost":5,"actualQueryCost":5,"throttleStatus":{"maximumAvailable":1000.0,"currentlyAvailable":995,"restoreRate":50.0}}}}
16、在 Postman 、Git Bash 中，试用期与正式皆可用。而在 Altair GraphQL Client，试用期不可用，仅正式可用。初步怀疑与在试用期网址调用时手动输入帐号密码登录有关系。不应手动登录。
